AML/IE Industrial LVDT Displacement Sensor

The AML/IE series of industrial LVDT displacement transducers are available with measuring ranges from ±0.5mm (0-1mm) up to ±500mm (0-1000mm).

Constructed from stainless steel, they are sealed to IP65 as standard with the option of IP68 (submersible), making them ideally suited for a multitude of harsh and demanding applications where environmental conditions are humid, wet, dusty or dirty.

An AC mV/V output is available as standard, with a range of DC voltage signal output options also offered including 0-5Vdc, 0-10Vdc and ±2.5Vdc, as well as a 3-wire 4-20mA current output.

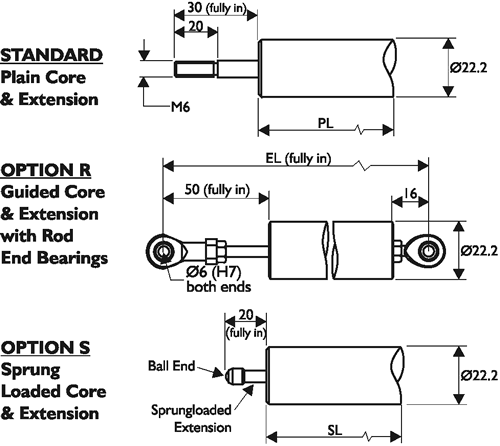

The choice of mechanical configurations includes captive guided core & extension rod, which is standard, plus spring-loaded core & extension rod with ball-end or guided core & extension with spherical rod-end bearings.

Datasheet

Associated Products

     LVDT Amplifier / Signal Conditioner

     Tracker 260 LVDT Digital Indicator

     Intuitive2-P Process Digital Indicator

Quick Enquiry Form

• Stroke Ranges: ±0.5mm to ±500mm

• AC mV/V or DC Voltage / Current Output

• Environmental Protection: IP65

• Core + Extension, Spring-Loaded &

  Rod-End Bearing Versions

• Optional IP68 Submersible &

  High-Temperature Versions
