AML/M Miniature LVDT Displacement Sensor

The AML/M series of miniature LVDT displacement transducers are available in ranges from ±0.25mm (0-0.5mm) up to ±50mm (0-100mm).

Available in either a 4-wire or 6-wire configurations, the miniature LVDT requires a sinusoidal AC supply voltage and provide an AC mV/V output signal which is linearly proportional to displacement.

A compact in-line DC in/DC out signal conditioner is available to compliment the miniature LVDT and provide a 0-5Vdc, 0-10Vdc or 4-20mA output signal if required.

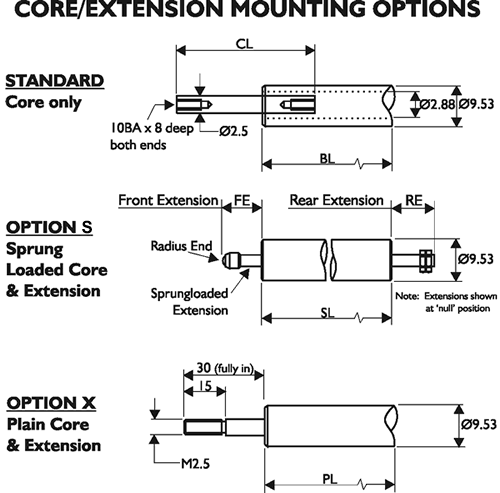

The miniature LVDT is available in one of 3 mechanical configurations; plain core-only, plain core & extension rod and spring loaded core and extension rod.

Their small size and variety of mechanical configurations make the AML/M miniature LVDT suitable for broad range of applications such as material testing machines, production and development test rigs, quality assurance testing, automotive and aerospace actuators and within pressure sensors.

As with all of our LVDT displacement transducer range customisation to suit your application is possible so please contact us if you would like to discuss the possibilities in your particular application.

Datasheet

Associated Products

     LVDT Amplifier / Signal Conditioner

     Tracker 260 LVDT Digital Indicator

Quick Enquiry Form

• Stroke Ranges: ±0.25mm to ±50mm

• AC mV/V Output

• Environmental Protection: IP40

• Core-Only, Core + Extension &

  Spring-Loaded Versions

• Optional In-Line DC/DC Signal Conditioner
