Miniature Button Load Cell | CDFM3

The CDFM3 series of miniature button load cells are designed for compression measurement applications where there is little space available for transducer mounting.

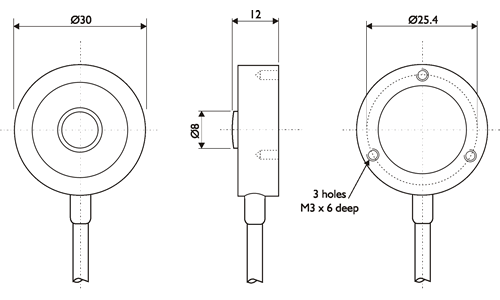

With capacities from 0-100N up to 0-20kN available in a load cell measuring just 30mm in diameter and 12mm in overall height, the CDFM3 is the second smallest button load cell that we offer.  If you need load cell that is smaller still, the CDF miniature button load cell is available in capacities from 0-500N up to 0-2000N and measures 15mm diameter and 8mm in height.

The CDFM3 miniature button load cell is ideal for retro-fitment into industrial machines and process systems for monitoring and control purposes, or for incorporation into new machine designs.

Contact our expert sales team using the form below to check price and availability on the sensor your require, or call us on +44 (0) 1189 817339.

Datasheet

Associated Products

     TR150 Handheld Digital Indicator
     Intuitive2-L Panel-Mount Indicator
    T24 Wireless Telemetry Range
     DSC-USB USB Signal Digitiser
     ICA Miniature Strain Gauge Amplifier
     SGA Signal Conditioner/Amplifier

Quick Enquiry Form

• Capacities: 0-100N up to 0-20kN

• Output: 2mV/V nominal (1.5mV/V on 0-100N)

• Environmental Protection: IP65

• Accuracy: <±0.5%/RC

• Integral Load Button
