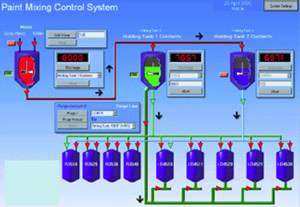

Data Loggers, Data Acquisition (DAQ) & Custom Software

As an accompaniment to our wide range of transducers we offer a range of data acquisition and logging hardware, along with customised software that provide any combination of monitoring, control and data collection functionality to suit your specific application.

LogBox-AA Data Logger (Low Cost)

The LogBox is a simple 2 channel data logger housed inside a compact IP65-rated enclosure that is able to read voltage and current signals (0-50mV, 0-10Vdc or 4-20mA).  It is battery-powered and has a memory capacity of 32,000 readings at logging rates from 10 seconds to 18 hours.

View The Datasheet

Squirrel SQ2010 Data Logger (Mid-Range)

The Squirrel SQ2010 is a very flexible data logger available with either 4 or 8 channels.  that is able to read voltage and current signals (±75mV, -6 to +25Vdc or 4-20mA), all common thermometer signals and pulse inputs.  It is battery-powered, has a memory capacity of up to 1.8 million readings and can sample at rates up to 25Hz (1-channel).

View The Datasheet

DataTaker DT85 Data Logger (High Spec)

The DataTaker DT85 is a high specification data logger that offers up 48 channels and can work with and voltage, current or thermometer input.  It is battery-powered, has an internal memory capacity of up 5 million readings with the option of USB memory extension to allow up to 50 million readings at logging rates up to 25Hz.

View The Datasheet
