Low Cost Rotary Torque Sensor | DRBK

The DRBK series of low cost rotary torque sensors manufactured by ETH Messtechnik in Germany have parallel shaft connections and offer a budget option for torque measurement in continuously rotating, high duty-cycle applications where the torque to be measured does not exceed 1000Nm.

The DRBK torque sensor is very compact, making it suitable for use where space to mount measuring devices is at a premium and is available with specially designed couplings to ensure optimum performance.

A ±5Vdc analogue output is provided as standard from the DRBK's internal signal amplifier which offers a high 1kHz frequency response ensuring that dynamic torque changes are captured.

Please contact our expert sales team using the form below, call us on +44 (0) 1189 817339, or send an email to [email protected] and we will be happy to assist you with your enquiry.

PDF Icon Datasheet
PDF Icon MK2 Couplings (0.5, 1 & 2Nm only)
PDF Icon BKE Couplings (5 to 1000Nm)


Associated Products

Intuitive4-P Panel-Mount Digital Indicator     Intuitive4-P Panel-Mount Indicator
Tracker 211 Panel-Mount Digital Indicator     Tracker 211 Panel-Mount Indicator
T24-HA Wireless Telemetry Indicator     T24 Wireless Telemetry Range


Quick Enquiry Form

Name:

Email Address or Phone No:

Your Enquiry:


DRBK Low-Cost Rotary Torque Sensor



  • Capacities: 0-0.5Nm to 0-1000Nm

  • ±5Vdc Output

  • Non-Linearity: <±0.3%/Rated Capacity

  • Low-Cost

  • Max Speed: 9000 to 20,000rpm

    (depending on capacity)

  • Specially Designed Couplings

  • Optional 60 Pulses/Revolution Speed Output

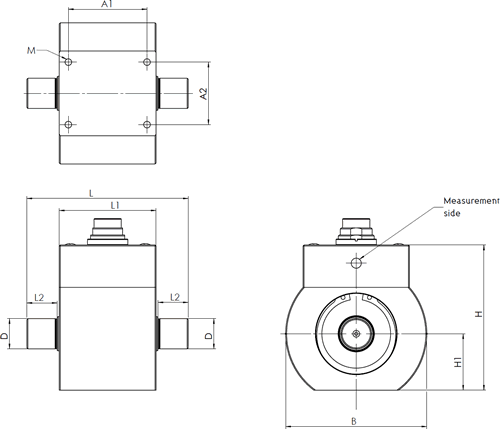

DRBK Low-Cost Rotary Torque Sensor Outline Drawing
Capacity (Nm)
L
ØB
H
H1 ±0.05
ØD g6
L1
L2
A1
A2
M
0-0.5, 0-1, 0-2
66
45
56
18
6
42
10
33
20
M3x5DP
0-5, 0-10, 0-20
80
70
72
28
15
48
15
39
31
M4x6DP
0-50, 0-100, 0-200
90
75
77.5
30
24
52
18
42
35
M4x6DP
0-500, 0-1000
120
105
97.5
40
40
65
26
50
55
M5x10DP
