At a Glance
- Primary Capacities: 0-0.5Nm to 0-1500Nm (Secondary Range: from ½ to 1/10th of Primary)
- ±10Vdc Output
- Non-Linearity: <±0.1%/Rated Capacity
- Max Speed: 7900 to 36,000rpm (depending on capacity)
- Specially Designed Couplings
- Optional Speed & Angle Outputs
- Maintenance Free Thanks to its Non-Contact Technology
- Extremely Versatile: 2 Measuring Ranges in 1 Device!
- Optimum Performance Guaranteed – Its Integrated Signal Amplifier Gives a Stable, Low-Noise Output
- Fast and Simple Installation with Specially Designed Couplings
Description
The DRDL dual-range rotary torque sensor series manufactured by ETH Messtechnik in Germany have parallel shaft connections and offers two operating ranges in one device making it ideal for test and measurement applications where high accuracy measurements across a broad operating range are required.
The second measuring range of the DRDL can be factory-calibrated anywhere from ½ of main range to 1/10th of the main range (i.e. main range = 0-5Nm, second range 0-0.5Nm) making it an extremely versatile torque sensor.
A ±10Vdc analogue output is provided simultaneously for both ranges from internal signal conditioners with a 200Hz frequency response ensuring that fast torque changes are captured.
Customised couplings can be offered with the DRDL dual-range rotary torque sensor to ensure easy integration into your application along with optimum performance.
Request a quotation from our technical sales team.
Technical Specifications

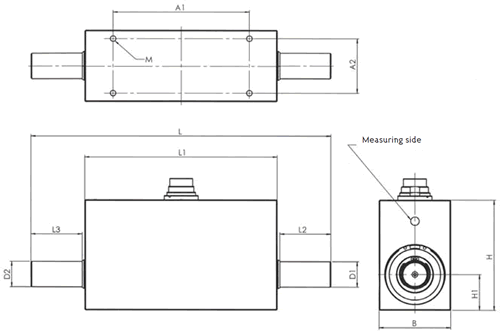

Product Dimensions
All dimensions are in mm.
V16.08.2023
Due to our policy on ongoing development, dimensions and specifications may change without notice.
Downloads
CAD Model Files
Our 3D models are provided in STEP format and can be viewed using FreeCAD. Other formats can be provided on request.
The .zip file below contains a separate model for each product variant.
