Non-Contact Torque Sensor | DRFL
The DRFL series of non-contact torque sensors provide
accurate torque measurement in continuously rotating applications
at speeds up to 37,000rpm and has a shaft type mechanical connection.
The non-contact torque sensor features integral signal conditioning giving
a ±10Vdc analogue signal with a bandwidth of 200Hz as standard, while a conditioner with a 1kHz bandwidth is optional. A pulsed speed
output (60 pulses/revolution) or angle output (360 pulses/revolution) is available on all models.
The DRFL can be supplied with customised couplings to ensure that you achieve the best possible torque measurement whilst making the task of installation as straightforward as possible.
Please contact our expert sales team using the form below, call us on +44 (0) 1189 817339, or send an email to info@appmeas.co.uk and we will be happy to assist you with your enquiry.
 Datasheet
Associated Products
 Intuitive2-P Panel-Mount Indicator
 Tracker 211 Panel-Mount Indicator
 T24 Wireless Telemetry Range
Quick Enquiry Form
|
-
Capacities: 0-0.05Nm to 0-20kNm
-
±5Vdc Output
-
Non-Linearity: <±0.1%/Rated Capacity
-
Optional Speed & Angle Outputs
-
Max Speed: 4000 to 37,000rpm
(depending on capacity)
-
Customised Couplings Available

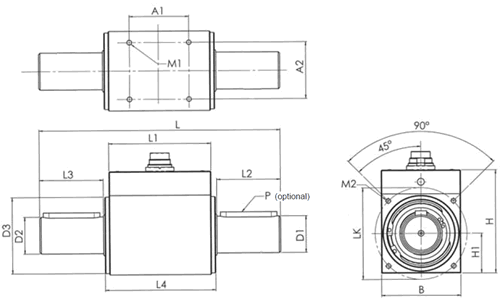

Model/Capacity (Nm) |
L |
B |
H |
H1 |
ØD1 g6 |
ØD2 g6 |
ØD3 |
ØLK |
L1 |
DRFL-I / 0.05, 0.1, 0.2, 0.5, 1 |
89 |
28 |
48.5 |
14 |
8 |
5 |
27 |
32 |
62 |
DRFL-I / 2 |
95 |
28 |
48.5 |
14 |
8 |
6 |
27 |
32 |
62 |
DRFL-Ib / 1, 2, 5, 10 |
110 |
36 |
54 |
18 |
10 |
10 |
32 |
38 |
68 |
DRFL-II / 5, 10, 20, 30, 50 |
145 |
42 |
58 |
21 |
15 |
15 |
38 |
46 |
79 |
DRFL-III / 50, 100, 150, 200, 300 |
170 |
56 |
73 |
28 |
26 |
26 |
54 |
65 |
72 |
DRFL-VI / 500, 1000, 1300, 1500 |
270 |
88 |
104 |
44 |
45 |
45 |
80 |
98 |
84 |
DRFL-VII / 2000, 3000, 4000, 5000 |
320 |
105 |
121 |
52.5 |
70 |
70 |
- |
- |
95 |
DRFL-VIII / 10,000, 15,000, 20,000 |
355 |
168 |
185 |
84 |
110 |
110 |
- |
- |
121 |
| |
|
L2 |
L3 |
L4 |
A1 |
A2 |
M1 |
M2 |
P (opt.) |
DRFL-I / 0.05, 0.1, 0.2, 0.5, 1 |
10 |
11 |
66 |
40 |
22 |
M3x5DP |
M3x6DP |
See
Data
Sheet |
DRFL-I / 2 |
14 |
14 |
66 |
40 |
22 |
M3x5DP |
M3x6DP |
DRFL-Ib / 1, 2, 5, 10 |
18 |
18 |
72 |
56 |
24 |
M3x6DP |
M3x6DP |
DRFL-II / 5, 10, 20, 30, 50 |
30 |
30 |
83 |
60 |
32 |
M3x6DP |
M3x6DP |
DRFL-III / 50, 100, 150, 200, 300 |
45 |
45 |
78 |
42 |
40 |
M4x8DP |
M4x8DP |
DRFL-VI / 500, 1000, 1300, 1500 |
85 |
85 |
90 |
46 |
70 |
M6x12DP |
M6x12DP |
DRFL-VII / 2000, 3000, 4000, 5000 |
110 |
110 |
- |
75 |
85 |
M8x16DP |
- |
DRFL-VIII / 10,000, 15,000, 20,000 |
115 |
115 |
- |
91 |
138 |
M10x16DP |
- |
|
|
