    Strain Gauge Load Cell Digitiser Module | DSJ1

    Robust Mount Board for Fast Interconnection of 1 DSC Card
    DSJ1 Strain Gauge Load Cell Digitiser Mounting Module
    Lead Time
    3 days
    Prices From
    £155
    (excl. VAT)
    Accelerated delivery available
    Quantity, OEM & educational discounts

    At a Glance

    • Single Channel Version
    • For use with all DSC Card models
    • 9-pin D-type & Field Terminal Connections
    • 3x Screen Clamps for EMC Termination
    • Available as PCB-only or fitted in an IP65 ABS case
    • Designed to Take 1 DSC Card for Easy PC or PLC Communications
    • Various Mounting Options to Suit Your Application – With Wall, Surface or DIN Rail Mounts
    • Improved Transducer Results with Digital Linearisation and Temperature Compensation
    • Harsh Environment Option – Total Dust & Low Pressure Water Jet Protected Enclosure

    Description

    The DSJ1 strain gauge load cell digitiser module is designed to house one DSC Digital Strain Card and provides a convenient and robust method of field connection.  There are options for wall, surface or DIN rail mounting.

    Designed to be mounted in-line with the transducer, the DSJ1 PCB is available either on its own or mounted in an IP65 enclosure.

    For multiple channel requirements the 4-way DSJ4 digitiser mounting module is available.

    Technical Specifications

    ParameterMin
    Connection1 x 8 way 2 part terminal for load cell and temperature sensor connections (2.5mm² cable max)
    1 x 5 way 2 part terminal for Digital Data and Power (2.5mm² cable max)
    1 x 3 way 2 part terminal for DSC digital I/O
    1 x 9 way D type connector for digital data
    Dimensions135 x 73 x 18mm PCB only
    Enclosure MaterialSealed to IP65 with cable entries via IP67 glands (when supplied with option of enclosure)
    Storage temperature-20 to +70˚C
    Operating Temperature-10 to +50˚C
    Relative Humidity95% maximum non condensing
    Safety/Low Voltage Directive73/23/EEC amended by 93/68/EEC
    EMC DirectiveEuropean EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC

    Product Dimensions

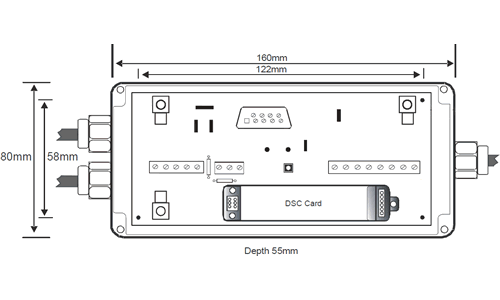

    DSJ1 Strain Gauge Load Cell Digitiser Module Outline Drawing
