    Flange type Static/Reaction Torque Transducer | DTD-F

    Accurate and Easily Adaptable, Direct Torque Measurement
    DTD-F Flange Static Reaction Torque Transducers
    3D
    Lead Time
    10 weeks
    Prices From
    £1,168
    (excl. VAT)
    Accelerated delivery available
    Quantity, OEM & educational discounts
    3D CAD models available

    At a Glance

    • Capacities: 0-10Nm to 0-50kNm
    • mV/V Strain Gauge Bridge Output
    • Environmental Protection: IP65
    • Accuracy: <±0.25%/Rated Capacity
    • Custom Capacities to 200kNm+
    • Ideal for Bolting Between Machinery to Measure Direct Torque
    • IP65 Protected From Low Pressure Water Jets
    • Offshore and Marine Submersible Versions Available
    • Fast and Simple Installation with its Integrated Connector
    • Customised Shaft and Configuration Options to Suit Your Exact Application

    Description

    The DTD-F series of static / reaction torque transducers have end flanges for bolting between machinery where a direct drive is required. Applications including the testing of automotive drives, aircraft actuator and industrial robots.

    The DTD-F flange static torque transducer is constructed from Stainless Steel on capacities up to 10kNm while capacities from 20kNm upwards are constructed from Alloy Steel.

    Installation and setup is made fast and simpler with its integral, robust connector.

    The design of the DTD-F lends itself readily to customisation, allowing us to offer custom flange sizes and fixing configurations, as well as versions with sealing to IP68 for applications where operating conditions are particularly harsh or involve total submersion.

    If you need a torque transducer without a flange end, please see our range of alternative static torque transducers.

    Technical Specifications

    Rated Capacity (RC)Nm0-10, 0-20, 0-50, 0-100, 0-200, 0-300, 0-500, 0-1000, 0-2k, 0-3k, 0-5k, 0-10k, 0-20k, 0-30k, 0-50k
    Operating ModesClockwise (CW)/Counter-Clockwise (CCW) / Clockwise (CW) & Counter-Clockwise (CCW)
    Sensitivity (RO)mV/V10Nm = 0.6 / 20Nm = 0.7 / 50Nm = 1.0 / 100Nm to 50kNm = 1.5typ.
    Zero Balance/Offset±%/Rated Output<1
    Output Symmetry (CW vs. CCW)±%/Rated Output<0.25 typical
    Non-Linearity±%/Rated Output (BFSL)<0.1 (<0.05 typical)
    Hysteresis±%/Full Scale Output<0.1 (<0.05 typical)
    Repeatability±%/Full Scale Output<0.02
    Temperature Effect on Zero±Full Scale Output/ ̊C<0.010
    Temperature Effect on Output±/Reading/ ̊C<0.010
    Bridge ResistanceOhms700 nominal
    Insulation ResistanceMegaohms>5000 @ 50Vdc
    Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
    Operating Temperature Range̊C0 to +80
    Compensated Temperature Range̊C+20 to +60
    Storage Temperature Range̊C0 to +80
    Safe Overload% of Rated Capacity150
    Ultimate Overload% of Rated Capacity300
    IP Rating (Environmental Protection)IP65
    WeightSee dimensions table
    Fatigue Rating20 million fully reversed cycles
    Cable Length (as standard)metres3
    Cable Type10Nm to 10kNm: M8 Binder connector with mating 3 metre cable assembly
    20kNm to 50kNm: M12 Binder connector with mating 3 metre cable assembly
    Construction17-4PH stainless steel + 303 stainless steel
    Resolution1 part in 250,000 (with appropriate instrumentation)

    Product Dimensions

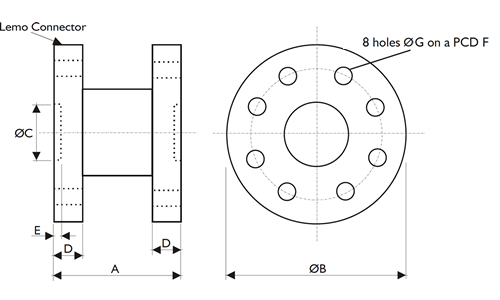

    DTD-F flange static torque transducer Outline Drawing
    Capacity (Nm)AØBØCDEØFGWeight kg
    (approximate)
    0-10, 0-20, 0-50, 0-100 7610038.113282.58.21.4
    0-200, 0-500 7610038.113382.58.21.4
    0-1000, 0-2000 9012550.119610810.23.1
    0-300012015050.135610816.38.7
    0-500012020280.138816516.316.9
    0-10k19020280.138816516.317.2
    0-20k, 0-30k, 0-50k 180278110.150423524.556

    All dimensions are in mm.

    Wiring Details

    WireDesignation
    Red+ve excitation
    Blue-ve excitation
    Green+ve signal (clockwise)
    Yellow-ve signal
    ScreenTo ground - not connected to sensor body

    Ordering Codes & Options

    Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeResult
    DTD-F10Nm003000DTD-F-10Nm-003-000
    DTD-F20Nm003000DTD-F-20Nm-003-000
    DTD-F50Nm003000DTD-F-50Nm-003-000
    DTD-F100Nm003000DTD-F-100Nm-003-000
    DTD-F200Nm003000DTD-F-200Nm-003-000
    DTD-F300Nm003000DTD-F-300Nm-003-000
    DTD-F500Nm003000DTD-F-500Nm-003-000
    DTD-F1000Nm003000DTD-F-1000Nm-003-000
    DTD-F2000Nm003000DTD-F-2000Nm-003-000
    DTD-F5000Nm003000DTD-F-5000Nm-003-000
    DTD-F10,000Nm003000DTD-F-10kNm-003-000
    DTD-F20,000Nm003000DTD-F-20kNm-003-000
    DTD-F30,000Nm003000DTD-F-30kNm-003-000
    DTD-F50,000Nm003000DTD-F-50kNm-003-000

    Downloads

    CAD Model Files

    Our 3D models are provided in STEP format and can be viewed using FreeCAD. Other formats can be provided on request.

    The .zip file below contains a separate model for each product variant.
