    Platform Load Cell | Single Point Load Cell | 0-250g to 0-40kg | OBUG

    Outstanding Accuracy, Lightweight and Low Cost, Low Range Compression Measuring
    OBUG Single Point Platform Load Cell
    OBUG platform load cell connected to intuitive digital panel meters measuring lift and drag force
    OBUG platform load cell cable exit
    3D
    Lead Time
    1 - 2 weeks
    Prices From
    £128
    (excl. VAT)
    Accelerated delivery available
    Customizable
    Quantity, OEM & educational discounts
    3D CAD models available

    At a Glance

    • Capacities: 0-250g up to 0-40kg
    • Output: 2mV/V
    • Environmental Protection: IP65 (2kg and below)
    • Environmental Protection: IP67 (3kg and above)
    • High Accuracy: <±0.03%/RC
    • Customised Versions Available
    • ATEX Certificate: EEx ia IIC T4
    • Designed for Low Range Measurement Applications
    • Ideal in Weighing Scales
    • Suitable for Industrial Environments
    • Ideal for Retrofitting
    • Lightweight & Low Cost
    • High Accuracy Guaranteed
    • Customised Versions to Suit Your Application
    • Immersion Protection up to 1m on Request

    Description

    Applied Measurements low profile single point platform load cell OBUG is designed for use in weighing scales and a wide selection of low range force measurement applications such as manufacturing, testing, research and development.  It is primarily designed for compression measurements, but it can also measure tension loads, or it can be used bi-directionally.

    The dual cantilever design of the single point platform load cell makes them insensitive to bending moments and also offers extremely high accuracy and stability, while aluminium construction ensures light weight and low cost.

    Applied Measurements can provide customised versions of the single point platform load cell with dimensions and fixings to allow direct retro-fitment in place of obsolete products or to suit specific applications are available on request.

    We selected the OBU series load cells from Applied Measurements because they provide us with the accuracy, long term stability and environmental protection that our weighing systems require – at an excellent price.

    Mark Thorp, Technical Director at C.F Whaler Ltd, UK OBU single point load cells May 14, 2015

    Technical Specifications

    CHARACTERISTICSOBUGOBUGOBUCUNITS
    Rated Capacity (RC)0-0.25, 0-0.5, 0-1, 0-20-3, 0-5, 0-10, 0-15, 0-20, 0-30, 0-400-10, 0-15, 0-20, 0-30, 0-50, 0-100, 0-200kgf
    Operating ModesCompression only
    Sensitivity (RO)1.5 nominal2±10%2±10%mV/V
    Maximum Platform Dimensions200 x 200350 x 350400 x 400mm
    Zero Balance/Offset<1<1<10±%/Rated Output
    Creep (30 mins)<0.08<0.03±%/Rated Capacity
    Non-Linearity<0.03±%/Rated Capacity
    Hysteresis<0.02%/Rated Capacity
    Repeatability<0.02±%/Rated Capacity
    Temperature Effect on Zero<0.005<0.002<0.006±%/Rated Capacity/˚C
    Temperature Effect on Sensitivity<0.015<0.002<0.015±%/Applied Load/˚C
    Effect of Eccentricity<0.015<0.006±%/Rated Capacity/cm
    Input Resistance400 nominalOhms
    Output Resistance350 nominalOhms
    Insulation Resistance>2000 @ 50VdcMegohms
    Excitation Voltage10 recommended (2-15 acceptable)Volts AC or DC
    Operating Temperature Range-20 to +70˚C
    Compensated Temperature Range-10 to +40˚C
    Storage Temperature Range-20 to +70˚C
    Safe Overload150% of Rated Capacity
    Ultimate Overload300% of Rated Capacity
    Deflection @ Rated Capacity<0.5 nominalmm
    Resonant FrequencyConsult Sales Team
    IP Rating (Environmental Protection)IP65: 2kg and below | IP67: 3kg and above
    Weight (excluding cable)See dimension table
    Fatigue LifeConsult Sales
    Cable Length (as standard)0.50.43metres
    Cable Type4 core screened, PVC sheath4 core screened, PVC sheath,6 core screened, PVC sheath,
    ConstructionAluminium Alloy
    Resolution1 part in 250,000 (with appropriate instrumentation)

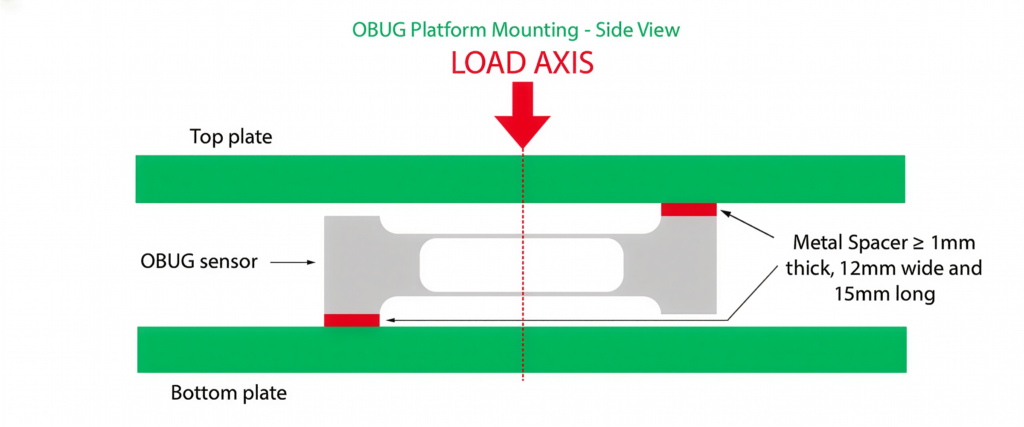

    Product Dimensions

    OBUG Single Point Platform Load Cell Outline Drawing
    Capacity (kg)
    A
    B
    C
    D
    F
    G
    H
    L
    Q
    V
    X
    J
    Weight (kg)
    0,25, 0.5, 1, 2
    70
    15
    22
    46
    58
    -
    7
    6
    12
    -
    0.5
    M3x0.5 - 22 deep
    0.07
    3, 5, 10, 15, 20, 30
    130
    25.4
    22
    80
    106
    -
    15
    12
    25
    -
    0.4
    M6x1 - 22 deep
    0.20
    40
    130
    30
    22
    80
    106
    -
    15
    12
    25
    -
    0.4
    M6x1 - 22 deep
    0.24

    All dimensions are in mm

    Wiring Details (Capacities of 2kg and Lower)

    WireDesignation
    Red+ve excitation
    Blue-ve excitation
    Green+ve signal
    Yellow-ve signal
    ScreenTo ground – not connected to load cell body

    Wiring Details (Capacities of 3kg to 40kg)

    WireDesignation
    Red+ve excitation
    Black-ve excitation
    Green+ve signal
    White-ve signal
    ScreenTo ground – not connected to load cell body

    Ordering Codes & Options

    Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeExample Result
    OBUG0.25kg0.5000OBUG-0.25kg-0.5-000
    OBUG0.5kg0.5000OBUG-0.5kg-0.5-000
    OBUG1kg0.5000OBUG-1kg-0.5-000
    OBUG2kg0.5000OBUG-2kg-0.5-000
    OBUG3kg0.4000OBUG-3kg-0.4-000
    OBUG5kg0.4000OBUG-5kg-0.4-000
    OBUG10kg0.4000OBUG-10kg-0.4-000
    OBUG15kg0.4000OBUG-15kg-0.4-000
    OBUG20kg0.4000OBUG-20kg-0.4-000
    OBUG30kg0.4000OBUG-30kg-0.4-000
    OBUG40kg0.4000OBUG-40kg-0.4-000

    Published Sensor Application Articles

    Below is a published sensor application paper that shows you how the OBUG platform load cell could be used in a specific application.  See our published sensor application articles page for many more.

    An experimental investigation of tsunami forces on coastal structures

    Lloyd, TO; (2016) An experimental investigation of tsunami forces on coastal structures. Doctoral thesis, UCL (University College London). Available as open access.

    Downloads

    CAD Model Files

    Our 3D models are provided in STEP format and can be viewed using FreeCAD. Other formats can be provided on request.

    The .zip file below contains a separate model for each product variant.
