Description

Applied Measurements OSBKT single-ended shear beam load cell is suitable for medium capacity weighing applications such as hoppers and vessels where a highly accurate measurement system is required.  They are also suitable for conveyor weighing applications.

The OSBKT single-ended shear beam load cell’s high integrity IP67 body and alloy steel construction make it ideal for general purpose industrial weighing applications where low-cost is a primary consideration.

Two mounting assemblies are available to suit the OSBKT single ended shear beam load cell; the Vessel Mount for static applications and the Shock / Anti-Vibration Mount for mixer, feed hopper and conveyor applications where vibration or transient loads may occur.  For mount dimensions, please download the datasheet.

For hazardous environments, our OSBKT single-ended shear beam load is available with ATEX (EEx ia IIC T6) hazardous area approvals.

Other discontinued third party products like the AW420/01000 can be easily substituted by our OSBKT-1000kg-003-000 product and will deliver similar performance and longevity.

Technical Specifications

	OSBKT	OSBST	UNITS
Rated Capacity (RC)	0-250, 0-500, 0-1000, 0-2000	0-500, 0-1000, 0-2000, 0-5000	kgf
Operating Modes	Compression Only
Sensitivity (RO)	2.0 ±0.1%		mV/V
Zero Balance/Offset	<2.0		±%/Rated Output
Zero Return after 30 mins.	<0.025		±%/Rated Capacity
Accuracy	<0.020		±%/Rated Capacity
Temperature Effect on Zero	<0.0023		±%/Rated Output/ ˚C
Temperature Effect on Sensitivity	<0.0010		±%/Applied Load/ ˚C
Input Resistance	380 nominal		Ohms
Output Resistance	350 nominal		Ohms
Insulation Resistance	>2000@50Vdc		Megohms
Excitation Voltage	10 recommended (2-15 acceptable)		Volts AC or DC
Operating Temperature Range	-20 to +70		˚C
Compensated Temperature Range	-10 to +40		˚C
Storage Temperature Range	-20 to +70		˚C
Safe Overload	150		% of Rated Capacity
Ultimate Overload	300		% of Rated Capacity
Deflection @ Rated Load	<0.4		mm
IP Rating (Environmental Protection)	IP67	IP68
Weight (excluding cable)	0.9 (250kg, 500kg & 1000kg), 1.1 (2000kg), 2.1 (5000kg)	0.9 (500kg, 1000kg & 2000kg), 1.9 (5000kg)	kg
Fatigue Life	108 cycles typical (109 cycles on fatigue-rated version)
Cable Length (as standard)	3	5	metres
Cable Type	6 core screened, PUR sheath, Ø6mm
Construction	Nickel Plated Alloy Steel	Stainless Steel

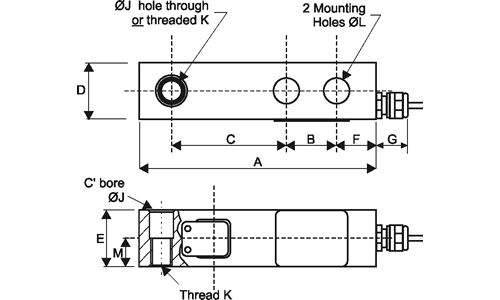

Product Dimensions

Model	Capacity (kg)	A	B	C	D	E	F	G	ØJ	K	ØL	M
OSBKT	250, 500, 1000	130	25.4	76.2	30.5	30.5	16	19	13.5	M12 x 1.75	13.5	16
OSBKT	2000	130	25.4	76.2	30.5	36	16	19	13.5	M12 x 1.75	13.5	16

All dimensions are in mm

Wiring Details

Wire	Designation
Red	+ve excitation
Black	-ve excitation
Green	+ve signal
White	-ve signal
Blue	+ve sense
Brown	-ve sense
Yellow	Cable Screen - to ground – not connected to load cell body

Ordering Codes & Options

Core Product	Capacity (inc Engineering Units)	Cable Length (m)	Specials Code	Example Result
OSBKT	250kg	003	000	OSBKT-250kg-003-000
OSBKT	500kg	003	000	OSBKT-500kg-003-000
OSBKT	1000kg	003	000	OSBKT-1000kg-003-000
OSBKT	2000kg	003	000	OSBKT-2000kg-003-000

Mounting Accessories

VESSEL MOUNT ASSEMBLY

• Simple to Install Into New or Existing Installations.
• Can be Installed With or Without the Load Cells in Position
• Stainless Steel Construction
• Easy Lifting and Removal of Load Cell
• Rugged Construction
• Reduces Installation Time
• Permanent Integral Safety Vessel Jacking System for your Vessel
• Anti-Lift Mechanism for Greater Vessel Stability
• Maximum Safety Protection from the Effects of Wind or Accidental Collision are Built-In.
• Heavy Duty Earth Straps Ensure that no Potential Difference Between the Upper and Lower Plates Occurs.
• Low Resistance Path Assists in Removing Strong Welding Currents.
• Substantial Protection Plate is Positioned Above the Cable Outlet to Prevent Damage by Falling Objects or Misuse.

MODEL	OSBKT & OSBST 500-2000kg	OSBKT & OSBST 5000kg
A	100	135
B	108	143
C	110	153
D	51	47
E	165	216
F	15	20
G	14	19.8
H	130	162
I	20	31.5
J	70	90
K	24	29
L	15	20
M	M16	M16
N	70	90
O	20	31.5
P	24	29
Q	111	159

SHOCK MOUNT ASSEMBLY

• Enables Weighing when a Vessel or Hopper is Subjected to External Forces
• Plated Steel Construction
• Minimises the Effects of Vibration
• Ease of Assembly Reduces Installation Time
• Complete Assembly is Supplied

MODEL	OSBKT & OSBST 500-2000kg
A	146
B	110
C	70
D	24
E	130
F	165
G	20
H	14
I	20
L	220
M	180
N	146
O	24
P	26
Q	18
R	106
S	30
