Shear Beam Load Cell | OSBST

At a Glance

Description

Applied Measurements OSBST single-ended shear beam load cell is suitable for medium capacity weighing applications such as hoppers and vessels where a highly accurate measurement system is required.  They are also suitable for conveyor weighing applications.

The high integrity IP68 body and stainless steel construction of the OSBST single-ended shear beam load cell means that it is ideal for use in process situations where regular washdowns are required to maintain hygiene standards.

Two mounting assemblies are available to suit Applied Measurements OSBST, the Vessel Mount for static applications and the Shock / Anti-Vibration Mount for mixer, feed hopper and conveyor applications where vibration or transient loads may occur.  For mount dimensions, please download the datasheet.

For hazardous environments, the OSBST single-ended shear beam load cell is available with ATEX (EEx ia IIC T6) hazardous area approvals.

Technical Specifications

	OSBKT	OSBST	UNITS
Rated Capacity (RC)	0-250, 0-500, 0-1000, 0-2000	0-500, 0-1000, 0-2000, 0-5000	kgf
Operating Modes	Compression Only
Sensitivity (RO)	2.0 ±0.1%		mV/V
Zero Balance/Offset	<2.0		±%/Rated Output
Zero Return after 30 mins.	<0.025		±%/Rated Capacity
Accuracy	<0.020		±%/Rated Capacity
Temperature Effect on Zero	<0.0023		±%/Rated Output/ ˚C
Temperature Effect on Sensitivity	<0.0010		±%/Applied Load/ ˚C
Input Resistance	380 nominal		Ohms
Output Resistance	350 nominal		Ohms
Insulation Resistance	>2000@50Vdc		Megohms
Excitation Voltage	10 recommended (2-15 acceptable)		Volts AC or DC
Operating Temperature Range	-20 to +70		˚C
Compensated Temperature Range	-10 to +40		˚C
Storage Temperature Range	-20 to +70		˚C
Safe Overload	150		% of Rated Capacity
Ultimate Overload	300		% of Rated Capacity
Deflection @ Rated Load	<0.4		mm
IP Rating (Environmental Protection)	IP67	IP68
Weight (excluding cable)	0.9 (250kg, 500kg & 1000kg), 1.1 (2000kg), 2.1 (5000kg)	0.9 (500kg, 1000kg & 2000kg), 1.9 (5000kg)	kg
Fatigue Life	108 cycles typical (109 cycles on fatigue-rated version)
Cable Length (as standard)	3	5	metres
Cable Type	6 core screened, PUR sheath, Ø6mm
Construction	Nickel Plated Alloy Steel	Stainless Steel

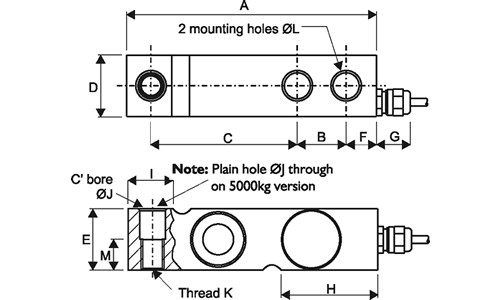

Product Dimensions

Model	Capacity (kg)	A	B	C	D	E	F	G	H	I	ØJ	K	ØL	M
OSBST	500, 1000, 2000	130	25.4	76.2	32	32	15.8	18	50.5	23.5	13.5	M12 x 1.75	13.5	16
OSBST	5000	171.5	38.1	95.25	36.5	48	19	18	70	37	20.5	M20 x 2.5	20.5	-

All dimensions are in mm

Wiring Details

Wire	Designation
Blue	+ve excitation
Green	+ve sense
White	+ve signal
Black	-ve Excitation
Grey	-ve Sense
Red	-ve Signal
Screen	To ground – not connected to load cell body

Ordering Codes & Options

Core Product	Capacity (inc Engineering Units)	Cable Length (m)	Specials Code	Example Result
OSBST	500kg	005	000	OSBST-500kg-005-000
OSBST	1000kg	005	000	OSBST-1000kg-005-000
OSBST	2000kg	005	000	OSBST-2000kg-005-000
OSBST	5000kg	005	000	OSBST-5000kg-005-000

Mounting Accessories

VESSEL MOUNT ASSEMBLY

• Simple to Install Into New or Existing Installations.
• Can be Installed With or Without the Load Cells in Position
• Stainless Steel Construction
• Easy Lifting and Removal of Load Cell
• Rugged Construction
• Reduces Installation Time
• Permanent Integral Safety Vessel Jacking System for your Vessel
• Anti-Lift Mechanism for Greater Vessel Stability
• Maximum Safety Protection from the Effects of Wind or Accidental Collision are Built-In.
• Heavy Duty Earth Straps Ensure that no Potential Difference Between the Upper and Lower Plates Occurs.
• Low Resistance Path Assists in Removing Strong Welding Currents.
• Substantial Protection Plate is Positioned Above the Cable Outlet to Prevent Damage by Falling Objects or Misuse.

MODEL	OSBKT & OSBST 500-2000kg	OSBKT & OSBST 5000kg
A	100	135
B	108	143
C	110	153
D	51	47
E	165	216
F	15	20
G	14	19.8
H	130	162
I	20	31.5
J	70	90
K	24	29
L	15	20
M	M16	M16
N	70	90
O	20	31.5
P	24	29
Q	111	159

SHOCK MOUNT ASSEMBLY

• Enables Weighing when a Vessel or Hopper is Subjected to External Forces
• Plated Steel Construction
• Minimises the Effects of Vibration
• Ease of Assembly Reduces Installation Time
• Complete Assembly is Supplied

MODEL	OSBKT & OSBST 500-2000kg
A	146
B	110
C	70
D	24
E	130
F	165
G	20
H	14
I	20
L	220
M	180
N	146
O	24
P	26
Q	18
R	106
S	30
