Titanium Construction with a High Pressure F-250-C Connection
Typical Lead Time
6 weeks
Prices From
£396
(excl. VAT)
Accelerated delivery available
Quantity, OEM & educational discounts
At a Glance
- Ranges: 0-1000bar up to 0-5000bar
- Outputs: 4-20mA, 0-5Vdc, 0-10Vdc, 10mV/V
- Environmental Protection: IP65
- Accuracy: <±0.25%/FS (<±0.35%/FS ≥3000 bar)
- High Pressure F-250-C Autoclave Fitting
- Field-Adjustable Span & Zero (±5%)
- Save Time With In-Field Span and Zero Adjustments
- Titanium Construction Offers Excellent Long-Term Performance
- Superb Media Compatibility Thanks to its Titanium Alloy Pressure Port
- ATEX Certified Explosive Atmosphere Versions Available
- Protected from Low Pressure Water Jets to Suit Most Environments
- Higher Accuracy Version Optional
Description
The P600FA high range pressure transmitter is designed for the measurement of pressure across a wide range of general purpose and industrial applications including hydraulics, medical, research and development and a range of steel manufacturing and preparation processes.
The P600FA high range pressure transmitter offers superb media compatibility as standard with its all-Titanium Alloy pressure port and sensing element. The process connection is a high-pressure F-250-C Autoclave type.
The P600FA high range pressure transmitter offers a 2-wire 4-20mA electrical output as standard while 10mV/V, 0-5Vdc and 0-10Vdc are optional.
Technical Specifications
| Input Pressure Range | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Pressure Range | Bar (gauge) | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Permissible Overpressure | x nominal | x 1.5 | x 1.5 | x 1.5 | x 1.5 | x 1.5 | x 1.25 | x 1.2 |
| Burst Pressure | Bar | 4000 | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 |
| Output signal & supply voltage | Number of Wires | Output | Supply Voltage | Supply Current |
|---|---|---|---|---|
| P610FA | 4 – wire | 10 mV/V | 5 to 15 Vdc (regulated) | 0.6mA/V |
| P605FA | 3 - wire | 0 – 5 Vdc | 13 to 30 Vdc (unregulated) | 13mA |
| P6010FA | 3 - wire | 0 – 10 Vdc | 13 to 30 Vdc (unregulated) | 13mA |
| P642FA | 2 - wire | 4 – 20 mA | 10 to 36 Vdc (unregulated) | N/A |
| Performance | ||
|---|---|---|
| Accuracy (non-linearity, hysteresis, repeatability) | % Full Scale Output | <±0.25/FS (BFSL) (<±0.35%/FS (BFSL) ≥3000bar) |
| Zero Offset and Span Tolerance | % / Span | ±0.5% (at room temperature) |
| Zero Offset and Span Adjustment | % / Full Scale Output | ±5 adjustment with easy access trimming potentiometers on amplified versions only |
| Media Temperature | ˚C | -50 to +125 |
| Ambient Temperature | ˚C | -40 to +85 (-20 to +70 ATEX Version) |
| Storage Temperature | ˚C | +5 to +40 |
| Thermal Zero Shift (TZS) | % / FS / ˚C | <±0.02 |
| Thermal Span Shift (TSS) | % / FS / ˚C | <±0.02 |
| Reverse Polarity Protection | Protected against supply voltage reversal up to 50Vdc (amplified version only) | |
| Media Compatibility | Any media compatible with BT9 Titanium Alloy | |
| Weight | grams | 125 nominal |
| Insulation Resistance | Megohm @ 50 Vdc | >100 |
| Input Resistance and Output Resistance | Ω | 1500 ±30% (P610FA only) |
| Electrical Connection | Mating socket with screw terminal connections to DIN 43650 | |
| Pressure Connection | F250-C Autoclave fitting (9/16-18UNF-2B female thread) | |
| Response Time (10% - 90%) | ms | ≤1 |
| Environmental Protection | IP65 | |
| Load Driving Capability | 4 - 20mA version | Supply voltage - 10V / 0.02A (i.e. 36V - 10V / 0.02A = 1300Ω |
| 0 - 5V / 0 - 10V versions | >5kΩ / >10kΩ | |
| Long Term Stability | % / Full Scale | < 0.2 / 6 months |
| Operational Life | Pressure Cycles | > 108 typical |
| ATEX Approval (4-20mA versions only) | Ex II 1 G Ex ia IIC T4 Ga (zone 0) | |
| Ex II 1 D Ex ia IIIC T135°C Da (zone 20) | ||
| EX I M 1 Ex ia I Ma (group I M1) |

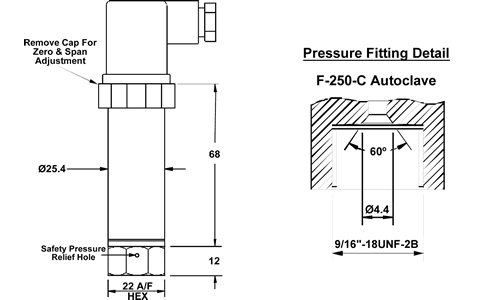

Product Dimensions
All dimensions are in mm
Wiring Details
| Pin No. | 2-Wire (4-20mA) | 3-Wire (0-5Vdc / 0-10Vdc) | 4-Wire (10mV/V) |
|---|---|---|---|
| 1 | +ve supply | common | -ve supply |
| 2 | 4-20mA signal | +ve supply | +ve supply |
| 3 | not connected | +ve output | +ve output |
| ⏚ | to case | to case | -ve output |
V25/2/Eng
Ordering Codes & Options
| P642FAC-1000barg-AA-00-000 (example code) | P6 | 42 | FA | C | - | 1000barg | - | A | A | - | 00 | - | 000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Family | |||||||||||||
| P6--FA | P6 | FA | |||||||||||
| Electrical Output | |||||||||||||
| 10 = 10mV/V (4 wire) | 10 | ||||||||||||
| 42 = 4-20mA (2 wire) | 42 | ||||||||||||
| 45 = 0.5-4.5Vdc (5V excitation) | 45 | ||||||||||||
| 05 = 0-5Vdc (3 wire) | 05 | ||||||||||||
| 010 = 0-10Vdc (3 wire) | 010 | ||||||||||||
| Electrical Connection / ATEX Certification | |||||||||||||
| Blank = Large DIN Plug & Socket (standard) | Blank | ||||||||||||
| C = IP67 Cable (1 metre fitted as standard) | C | ||||||||||||
| X = ATEX Certified | X | ||||||||||||
| CX = IP67 cable + ATEX | CX | ||||||||||||
| Pressure Range | |||||||||||||
| 1000barg = 0 to 1000bar gauge | - | 1000barg | |||||||||||
| 15,000psig = 0 to 15,000psi gauge | - | 15,000psig | |||||||||||
| Accuracy (Non-Linearity & Hysteresis) | |||||||||||||
| A = <±0.25%/FS (standard) (≤±0.35 %>3000 bar) | - | A | |||||||||||
| B = <±0.15%/FS ≤2000 bar (FA, FAX & FD versions only) | - | B | |||||||||||
| Process Connection | |||||||||||||
| B = F-250C Autoclave (9/16” UNF Female) | B | ||||||||||||
| D = M16 x 1.5 Female Cone Seal | D | ||||||||||||
| Cable Length in Metres | |||||||||||||
| 00 = None | - | 00 | |||||||||||
| 01 = 1 metre | - | 01 | |||||||||||
| Specials Code | |||||||||||||
| 000 = No Special Requirements | - | 000 |
Last updated: 30th April 2026
Due to our policy on ongoing development, dimensions and specifications may change without notice.
Due to our policy on ongoing development, dimensions and specifications may change without notice.
