Flush Pressure Sensor | Flush Diaphragm Pressure Transducer | P600FD

The P600FD flush pressure sensor is designed for use in food, process and industrial applications where the media is either viscous, contains particulates or solids, or is otherwise liable to block the port of a conventional pressure transducer with a recessed diaphragm or pressure port.

The P600FD flush pressure sensor is also particularly suitable for applications where cavity-free installation or low volumetric displacement is required.

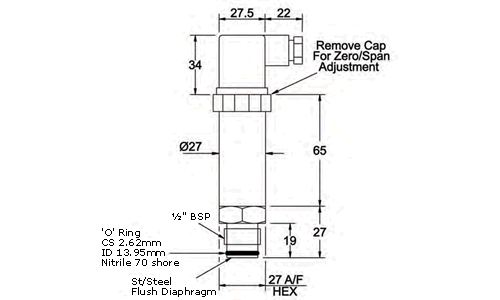

The wetted parts of the flush pressure sensor are manufactured from 316 Stainless Steel and Nitrile, and the process connection is a ½" BSP male as standard, while electrical output is an industry standard 2 wire 4-20mA signal which exits through a DIN43650 plug & socket rated to IP65.

If you require a flush diaphragm pressure transducer with a variation on this specification please contact us to discuss the possibilities.

Datasheet

Associated Products

     Intuitive2-P Panel-Mount Indicator
    T24 Wireless Telemetry Range

Quick Enquiry Form

• Ranges: 0-100mbar up to 0-400bar

• Outputs: 4-20mA

• Environmental Protection: IP65

• Accuracy: <±0.3%/FS

• ½" BSP or 1" BSP Pressure Port

  (1" BSP only below 6bar)


• Flush Sensing Diaphragm


• ATEX Version: II 1 GD EEx ia IIC T4
