Pressure Sensor with Display | Pi600DD

The Pi600DD is a pressure sensors with display and provides a local 4-digit LED readout of the measured pressure in your preferred engineering units, be they bar, millibar, psi, kg/cm2, mWC or any other.

Onward transmission of a 2-wire 4-20mA or 3-wire 0-10Vdc signal is also provided from the pressure sensor display along with either one or two independent PNP switch contacts for process control and signalling.

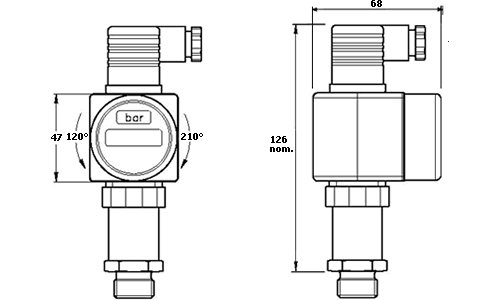

Configuration of the pressure sensor display and switching points is menu driven via two miniature push buttons located on the front panel of the display.  Correct orientation of the display is achieved through the ability to rotate the display on both its horizontal and vertical axes.

The entire pressure sensor and display assembly is rated to IP65 with electrical connections via a DIN43650 plug & socket or an M12x1 screw-fit connector as preferred.

A G¼" male process connection is offered as standard along with a choice of alternatives including G½" male, G¼" female, ¼" NPT male and ½" NPT male.  Custom process connections can also be offered if required.

We are able to customise the Pi600DD pressure sensor with display to suit your exact requirements if necessary, whilst ensuring a minimal effect on price and availability.  Contact us using the form below to check price and availability on the sensor your require, or call us on +44 (0) 1189 817339.

Datasheet

Associated Products

     Intuitive2-P Panel-Mount Indicator
     Tracker 211 Panel-Mount Indicator
    T24 Wireless Telemetry Range

Quick Enquiry Form

• Ranges: 0-25mbar up to 0-700bar

• Outputs: Volts / mA

• Environmental Protection: IP65

• Accuracy: <±0.25%/FS (0.1% option)

• 1 or 2 PNP Switch Outputs
