At a Glance
- Ranges: 0-0.5bar up to 0-800bar Gauge, Seal Gauge or Absolute
- Output: 1.4-6.0mV/V (dependent on range)
- Bridge Resistance: 11kΩ ±30%
- Accuracy: <±0.5%/FS typical
- High Purity Al2O3Alumina Ceramic
- Very Compact 18mm Body – Ideal for OEM Applications
- Excellent Long-Term Stability thanks to the Direct Fusion of Wheatstone Bridge onto Sensing Element
- Sealed for Direct Installation into OEM Equipment.
- Low Operating Current = Maximum Battery Life
Description
The PTi18 pressure sensors are made with a ceramic Al2O3 base plate and a flush diaphragm, and operates using the piezoresistive principle.
The Wheatstone bridge is screen-printed on one side of the flush ceramic diaphragm which is, in turn, glued to the base plate. The bridge faces the inside where a cavity is made and the diaphragm’s opposite side can therefore be exposed directly to the medium to be measured. Because of the Al2O3 ceramic excellent chemical resistance to aggressive gases, most of solvents and acids, etc, no additional protection is normally required.
The PTi18 ceramic pressure sensor capsule is intended for use by OEM manufacturers of machines and equipment where the integration of pressure sensing or monitoring is required.
The compact 18mm diameter body design is suited to a wide range of applications including battery-powered, handheld devices where the PTi18’s high 11kΩ ensures minimal current draw and maximum battery life.
To ensure that the PTi18 ceramic pressure sensor capsule meets its specification when installed, it is essential to ensure that it is mounted correctly. We will provide all the information required including engineering drawings to ensure successful incorporation into your product.
Technical Specifications
| Nominal Pressure Range | bar | 0.5 | 1 | 2 | 5 | 10 | 20 | 50 | 100 | 200 | 400 | 600 | 800 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Permissible Overpressure | bar | 1 | 2 | 4 | 10 | 15 | 35 | 100 | 150 | 350 | 500 | 750 | 1000 |
| Burst Pressure | bar | 2 | 3 | 6 | 15 | 25 | 65 | 120 | 200 | 500 | 650 | 950 | 1250 |
| Thickness (T) | mm ±0.2 | 6.15 | 6.17 | 6.23 | 6.30 | 6.35 | 6.55 | 6.70 | 6.70 | 7.05 | 7.32 | 7.55 | 8.05 |
| Typical Sensitivity | mV/V | 1.4-2.4 | 2.0-3.5 | 2.0-3.5 | 2.3-4.0 | 3.1-5.5 | 2.4-4.0 | 4.0-6.0 | 2.7-4.2 | 2.4-3.9 | 3.1-4.8 | 3.1-4.8 | 2.0-3.5 |
| Response Time* | ms | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| *Response times are for open-faced sensor (i.e. with no pressure port or tube which will dampen response) | |||||||||||||
| Supply Voltage (Regulated) | Vdc | 2 - 30 (10 reccommended) |
| Bridge Resistance | ohms | 11K ±30% |
| Sensitivity (Rated Output) | mV/V | 1.4 - 6.0 (dependent on capsule range, see above) |
| Offset | mV/V | -0.1 ±0.1 |
| Accuracy (non-linearity, hysteresis, repeatability) | % Full Scale Output | ≤±0.5 (typical) |
| Stability | % Full Scale / Year @ 25˚C | ≤±0.3 |
| Operating Temperature | ˚C | -40 to +135 |
| Thermal Zero Shift (TZS) | % / FS / ˚C | ≤±0.05 (-40˚C to 25˚C) ≤±0.02 (25˚C to 85˚C) |
| ≤±0.03 (-40˚C to 25˚C) ≤±0.005 (25˚C to 85˚C) (available on request) |
||
| Thermal Span Shift (TSS) | % / FS / ˚C | ≤-0.020 |
| Media Compatibility | Any gas or fluid compatible with Alumina Ceramic (AL2O3 96%) | |
| Electrical Connection: | Pins (others available on request) |
All dimensions are in mm

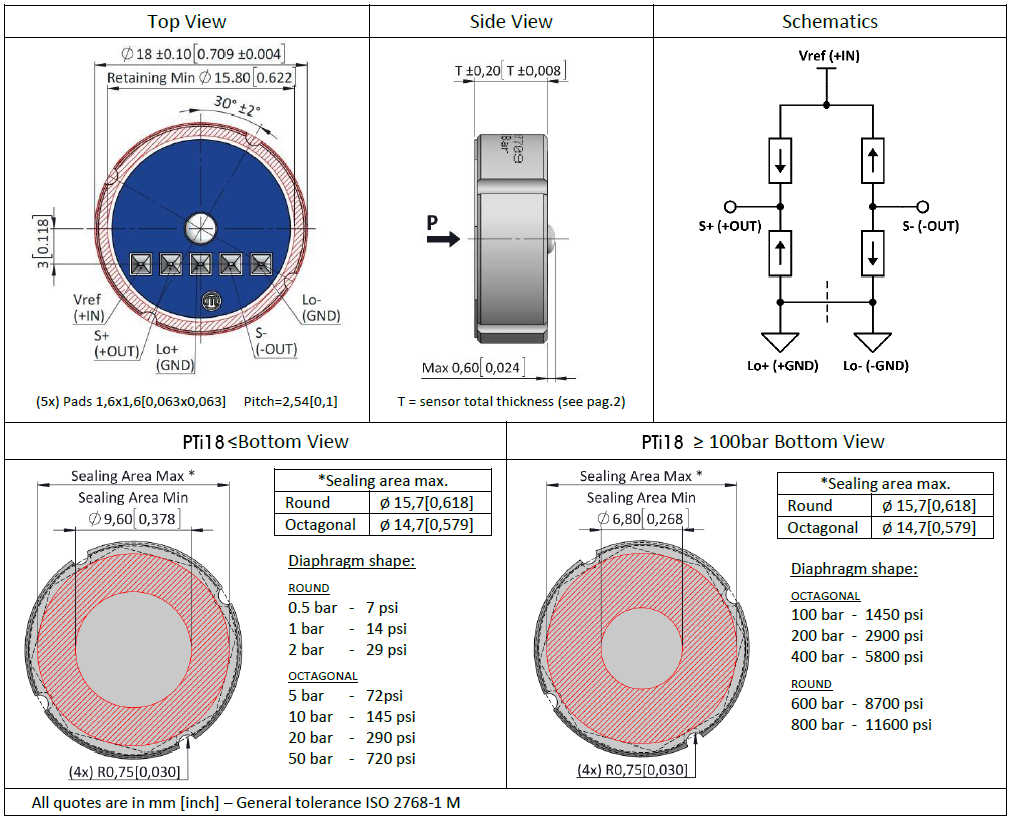

Mechanical drawings and electrical schematics

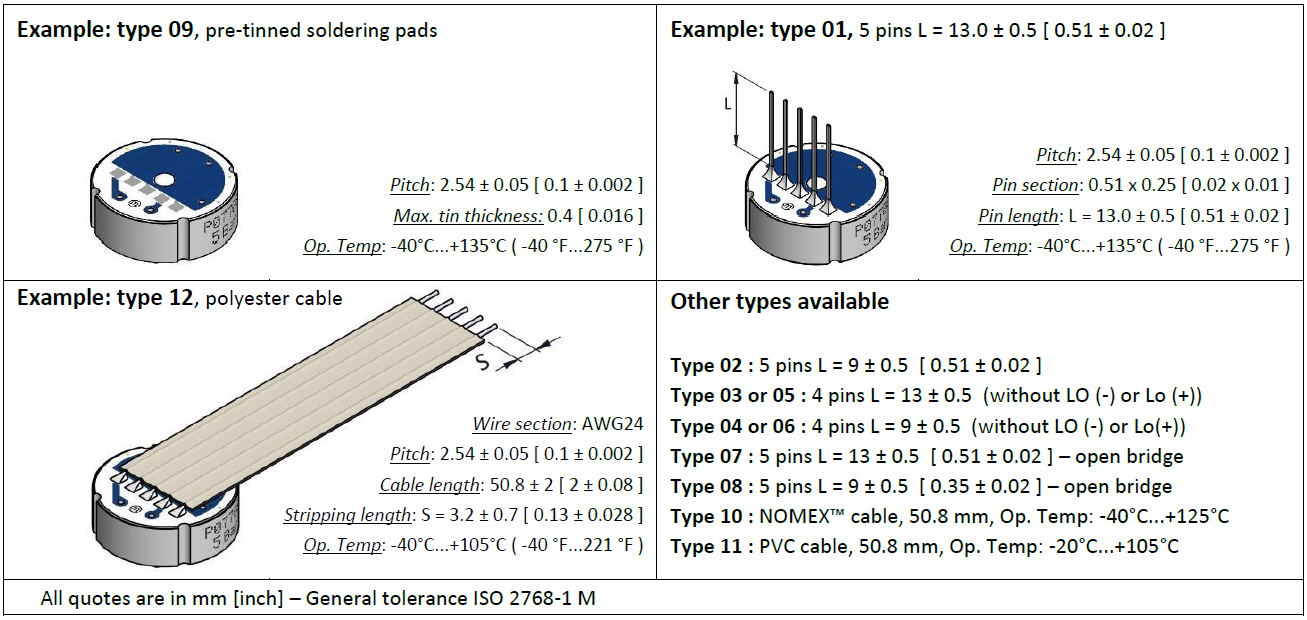

Electrical connector options
VE-2026
Ordering Codes & Options
A valid order code would be PTi18A-001-Z-6-01-0
| PTi18 | ||||||
|---|---|---|---|---|---|---|
| SENSOR TYPE | ||||||
| Absolute | A | |||||
| Gauge | R | |||||
| Sealed Gauge | S | |||||
| PRESSURE RANGE | ||||||
| 0-0.5 bar (-/R/-) | 0p5 | |||||
| 0-1 bar (A/R/S) | 001 | |||||
| 0-2 bar (A/R/S) | 002 | |||||
| 0-5 bar (A/R/S) | 005 | |||||
| 0-10 bar (A/R/S) | 010 | |||||
| 0-20 bar (A/R/S) | 020 | |||||
| 0-50 bar (A/R/S) | 050 | |||||
| 0-100 bar (-/-/S) | 100 | |||||
| 0-200 bar (-/-/S) | 200 | |||||
| 0-400 bar (-/-/S) | 400 | |||||
| 0-600 bar (-/-/S) | 600 | |||||
| 0-800 bar (-/-/S) | 800 | |||||
| OFFSET | ||||||
| -0.1 ±0.1 mV/V [neg] | N | |||||
| 0.0 ±0.1 mV/V [zero] | Z | |||||
| +0.1 ±0.1 mV/V [pos] | P | |||||
| THERMAL OFFSET SHIFT ADJUSTMENT | ||||||
| ≤ ± 0.06 % FS/K (not thermally compensated) | 6 | |||||
| ≤ ± 0.04 % FS/K | 4 | |||||
| ≤ ± 0.02 % FS/K | 2 | |||||
| TERMINATION TYPE | ||||||
| 5 pins 13 mm ± 0.5 mm, pitch 2.54 mm | 01 | |||||
| 5 pins 9 mm ± 0.5 mm, pitch 2.54 mm | 02 | |||||
| 4 pins 13 mm ± 0.5 mm, pitch 2.54 mm – without LO (-) | 03 | |||||
| 4 pins 9 mm ± 0.5 mm, pitch 2.54 mm – without LO (-) | 04 | |||||
| 4 pins 13 mm ± 0.5 mm, pitch 2.54 mm – without LO (+) | 05 | |||||
| 4 pins 9 mm ± 0.5 mm, pitch 2.54 mm – without LO (+) | 06 | |||||
| 5 pins 13 mm ± 0.5 mm, pitch 2.54 mm – open bridge | 07 | |||||
| 5 pins 9 mm ± 0.5 mm, pitch 2.54 mm – open bridge | 08 | |||||
| 5 pre-tinned soldering pads, pitch 2.54 mm | 09 | |||||
| NOMEX™ cable 50.8 mm – 5 wires, pitch 2.54 mm | 10 | |||||
| PVC flat cable 50.8 mm – 5 wires, pitch 1.27 mm | 11 | |||||
| Polyester cable 50.8 mm – 5 wires, pitch 2.54 mm | 12 | |||||
| ADDITIONAL COATING | ||||||
| Without | 0 |
Due to our policy on ongoing development, dimensions and specifications may change without notice.
