Wireless Analogue Output Module | Telemetry T24-A01 & T24-A01i

The T24-A01 telemetry / wireless analogue output module will provide a high resolution industry standard analogue voltage or current signal from any T24 telemetry wireless acquisition module.

Configuration of the T24-AO1 or T24-AO1i is performed wirelessly via either the T24-BSu USB Base Station or the T24-BSi Industrial Base Station in conjunction with the free T24 Telemetry Toolkit Software.

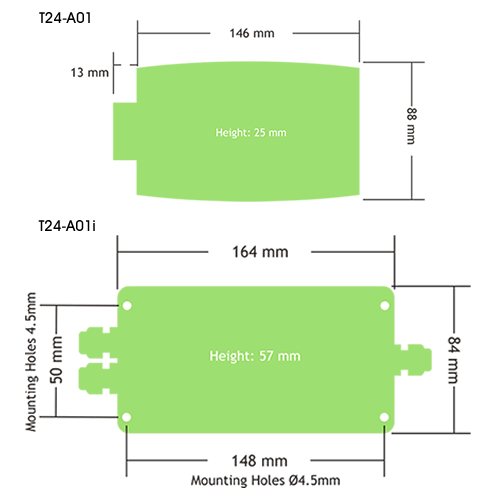

The T24-AO1 is available in either an IP65 industrial enclosure or desktop (T24-AO1i) enclosure which provide maximum ranges of 200 metres and 20 metres respectively.

Electrical connections to either wireless analogue output module are made quickly and easily by 2-part screw terminals.

The comptaible T24 acquisition modules cover input signals including load cell, strain gauge, voltage (0-5Vdc & 0-10Vdc) and current (0-20mA or 4-20mA).  Links to these products can be found below.

Please contact our expert sales team using the form below, call us on +44 (0) 1189 817339, or send an email to info@appmeas.co.uk and we will be happy to assist you with your enquiry.

Datasheet    Manual

Associated Products

     T24-SA Load Cell Acquisition Module
     T24-SAf 2kHz Load Cell DAQ Module
     T24-VA Voltage Acquisition Module
     T24-IA Current Acquisition Module
     T24-BSu USB Base Station
     T24-HS Simple Handheld Display

Quick Enquiry Form

• Provides Analogue Output from any

  T24 Acquisition Module

• User-Configurable Output:

  0-10Vdc, 4-20mA, ±10Vdc, ±5Vdc or 0-20mA

• Choice of Desktop or Industrial Enclosure

• Range: Up To 200 metres (20 metres for

  (desktop enclosure version)

• Simple To Configure
