At a Glance
- For use with all T24 Acquisition Modules
- Can Display Up To 12 Separate Inputs
- Powered by 2x ‘AA’ Alkaline Batteries
- Up To 40 Hours Continuous Operation
- IP67 Rated
- Advanced Portable On-Site Wireless Monitoring
- Perfect for Multi-Channel Applications – up to 12!
- Ideal for BOTH Indoor & Outdoor Environments
- IP67 Waterproof for Reliability in Tough Conditions
- Fantastic Transmission Range – Up to 800 metres!
Description
The T24-HA advanced wireless portable handheld receiver display is a well-featured handheld wireless indicator designed for use with multiple T24 wireless telemetry acquisition modules and features an 8-digit LCD display.
The T24-HA advanced wireless portable handheld receiver display is configured using either a T24-BSu or T24-BSi base station and can be set to power-on and power-off the remote acquisition module as it is turned on and off.
It also offers Gross and Tare functionality to allow measurement from a zeroed value when required and can be used to send data to the T24-PR1 Wireless Telemetry Printer.
It is powered by 2x ‘AA’ batteries and has a range of up to 800 metres.
For applications where a single acquisition module is being used, the T24-HS Simple Handheld Telemetry Display is ideal.
Please contact our expert sales team using the form on the right, call us on +44 (0) 1189 817339, or send an email to [email protected] and we will be happy to assist you with your enquiry.
Technical Specifications
| Radio | Min | Typical | Max | Units |
|---|---|---|---|---|
| Licence | Licence Exempt | |||
| Modulation Method | MS (QPSK) | |||
| Radio Type | Transceiver (2 way) | |||
| Data Rate | 250 | K bits / second | ||
| Radio Frequency | 2.4 | 2.4835 | GHz | |
| Power | 10 | mw | ||
| Range* | 800 | Metres | ||
| Channels (DSSS) | 15 | |||
| *Tests conducted in an open field site with the transmitter at the top of a 3m pole. The receiver was mounted 1.5m off the ground. | ||||
| Power Supply | ||||
| Power Supply Voltage | 2.5 | 3 | 3.6 | Vdc (2 x AA batteries) |
| Active | 35 | 40 | mA | |
| Low Power Mode | 120 | 160 | µA | |
| Estimated Battery Life using 2Ahr batteries: | ||||
| Standby Mode (powered off) | 1.5 | Years | ||
| Continuous Operation | 35 | Hours | ||
| Environmental | ||||
| Operating Temperature Range | -10 | - | 50 | °C |
| Storage Temperature Range | -40 | - | 85 | °C |
| Humidity | 0 | 95 | %RH | |
| IP Rating | IP67 | |||

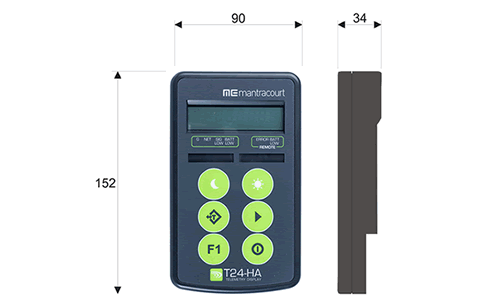

Product Dimensions (mm)
V2.1
Watch the How To tutorials for the T24 Software
Due to our policy on ongoing development, dimensions and specifications may change without notice.
Downloads
Other Downloads
- T24 Wireless Telemetry Manual
Software downloads to accompany the T24 modules are available below - a T24 base station is required to use the software and configure T24 modules.
Download Description T24 Toolkit This toolkit allows configuration, calibration and testing of the T24 range of 2.4GHz telemetry products. The T24 Toolkit is a software tool that allows communication with the T24 range of 2.4GHz telemetry products. A suitable telemetry to PC interface will be required such as a base station (T24-BSue). T24Log100 T24LOG100 has been designed to allow the logging and visualisation of up to 100 channels of data from the T24 Wireless Telemetry range of sensor transmitters. T24 Quick View This product allows you to view and log data from the T24 range of 2.4GHz telemetry acquisition modules. Only works with T24-BSu USB base station.
