At a Glance
- For use with all T24 Acquisition Modules
- Works With Up To twelve T24 Transmitter Modules
- Powered by 2x ‘AA’ Alkaline Batteries
- Up To 40 Hours Continuous Operation
- IP67 Rated
- Easy Portable On-Site Wireless Monitoring
- Ideal for Multi-Channel Applications
- For BOTH Indoor & Outdoor Environments
- Waterproof Enclosure
- Fantastic Transmission Range – Up to 800 metres!
Description
The T24-HR is a roaming wireless portable handheld receiver display designed for use with up to twelve T24 wireless telemetry transmitter modules.
The roaming wireless portable handheld receiver display is very easy to use; simply press the ‘play’ button and it will locate the 12 strongest T24 transmitter signals and display the identification tag of each module followed by the current measurement value. When more than one transmitter module is connected, the handheld receiver generates a list that can be scrolled through at will.
The T24-HR roaming wireless portable handheld receiver display is configured using either a T24-BSu or T24-BSi base station and can be set to power-on and power-off the remote acquisition module. It is powered by 2x ‘AA’ batteries and has a range of up to 800 metres.
For applications where a single acquisition module is being used, the T24-HS Simple Handheld Telemetry Display is ideal.
Please contact our expert sales team using the quick enquiry form on the right, call us on +44 (0) 1189 817339, or send an email to [email protected] and we will be happy to assist you with your enquiry.
Technical Specifications
| Min | Typical | Max | Units | |
|---|---|---|---|---|
| Licence | Licence Exempt | |||
| Modulation Method | MS (QPSK) | |||
| Radio Type | Transceiver (2 way) | |||
| Data Rate | 250 | K bits / second | ||
| Radio Frequency | 2.4 | 2.4835 | GHz | |
| Power | 10 | mw | ||
| Range* | 800 | Metres | ||
| Channels (DSSS) | 15 | |||
| *Tests conducted in an open field site with the transmitter at the top of a 3m pole. The receiver was mounted 1.5m off the ground. | ||||
| Power Performance | ||||
| Power Supply Voltage | 2.5 | 3 | 3.6 | Vdc (2 x AA batteries) |
| Active | 35 | 40 | mA | |
| Low Power Mode | 120 | 160 | µA | |
| Estimated Battery Life using 2Ahr batteries: | ||||
| Standby Mode (powered off) | 1.5 | Years | ||
| Continuous Operation | 35 | Hours | ||
| Environmental | ||||
| Operating Temperature Range | -10 | - | 50 | °C |
| Storage Temperature Range | -40 | - | 85 | °C |
| Humidity | 0 | 95 | % non-condensing | |
| IP Rating | IP67 | |||
| European EMC Directive | 2004/108/EC | |||
| Low voltage directive | 2006/95/EC | |||
| Approvals | ||||
| Complies EMC Directive | 2004/108/EC The Radio Equipment and Telecommunications Terminal Equipment (R&TTE) Directive, 1999/5/EC. | |||

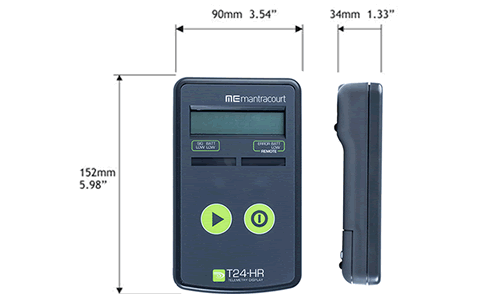

Product Dimensions
V2.0
Due to our policy on ongoing development, dimensions and specifications may change without notice.
Downloads
Other Downloads
- T24 Wireless Telemetry Manual
Software downloads to accompany the T24 modules are available below - a T24 base station is required to use the software and configure T24 modules.
Download Description T24 Toolkit This toolkit allows configuration, calibration and testing of the T24 range of 2.4GHz telemetry products. The T24 Toolkit is a software tool that allows communication with the T24 range of 2.4GHz telemetry products. A suitable telemetry to PC interface will be required such as a base station (T24-BSue). T24Log100 T24LOG100 has been designed to allow the logging and visualisation of up to 100 channels of data from the T24 Wireless Telemetry range of sensor transmitters. T24 Quick View This product allows you to view and log data from the T24 range of 2.4GHz telemetry acquisition modules. Only works with T24-BSu USB base station.
