This product has been discontinued.
Please use our Rotary Torque Transducers | Brushless Type instead.
At a Glance
- Capacities: 0-50Nm to 0-5000Nm 0-20kNm
- 1.5mV/V Output
- Slip Ring Type
- Non-Linearity: <±0.3%/Rated Capacity
- Max Speed: 2000 to 5000rpm (depending on capacity)
Description
The YDFF series of flange type slip ring rotary torque transducers have flanged drives at each end with threaded holes for simple in-line installation. Their compact design requires the minimum of mounting space and includes a mounting foot to help with installation.
Applications for the YDFF flange type rotary torque transducer include performance testing of automotive components, clutches, transmissions, motors and pumps, as well as an array of general industrial measurements.
Please contact our expert sales team using the form in the sidebar, call us on +44 (0) 1189 817339, or send an email to [email protected] and we will be happy to assist you with your enquiry.
Technical Specifications

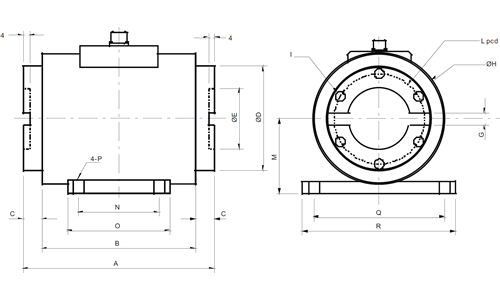

Product Dimensions
| Capacity (Nm) | A | B | C | ØD | ØE | G | ØH | M | N | O | ØP | Q | R | L | I | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50, 100, 200 | 119 | 95 | 12 | 65 | 38 | 8 | 81 | 46 | 50 | 64 | 6.5 | 81 | 95 | 56 | 8-M6x15DP | 5000 |
| 500 | 125 | 99 | 13 | 76 | 40 | 10 | 88 | 49.5 | 50 | 64 | 6.5 | 88 | 102 | 60 | 8-M^x15DP | 4000 |
| 1k | 122 | 96 | 13 | 86 | 52 | 16 | 100 | 8 | 50 | 64 | 8.5 | 100 | 118 | 68 | 8-M8x15DP | 3000 |
| 2k | 141 | 105 | 18 | 102 | 60 | 16 | 116 | 66 | 50 | 68 | 8.5 | 116 | 134 | 85 | 8-M8x15DP | 3000 |
| 3k | 141 | 105 | 18 | 102 | 60 | 16 | 116 | 66 | 50 | 68 | 8.5 | 116 | 134 | 85 | 8-M8x15DP | 2000 |
| 5k | 141 | 105 | 18 | 107 | 70 | 20 | 128 | 74 | 56 | 74 | 8.5 | 128 | 146 | 91 | 8-M8x15DP | 2000 |
Due to our policy on ongoing development, dimensions and specifications may change without notice.
