Flanged Rotary Torque Transducer | YDH
The YDH series of slip ring high capacity rotary torque transducers have flange
drives at each end with clearance holes for in-line installation
in minimal space.
Their compact size and high capacities make them ideal for automotive,
aerospace and industrial applications.
Please contact our expert sales team using the form below, call us on +44 (0) 1189 817339, or send an email to info@appmeas.co.uk and we will be happy to assist you with your enquiry.
 Datasheet
Associated Products
 TR150 Handheld Digital Indicator
 Intuitive2-L Panel-Mount Indicator
 T24 Wireless Telemetry Range
 DSC-USB USB Signal Digitiser
 ICA Miniature Strain Gauge Amplifier
 SGA Signal Conditioner/Amplifier
Quick Enquiry Form
|
-
Capacities: 0-200Nm to 0-80kNm
-
1.5mV/V Output
-
Slip Ring Technology
-
Non-Linearity: <±0.3%/Rated Capacity
-
Max Speed: 1000 to 5000rpm
(depending on capacity)

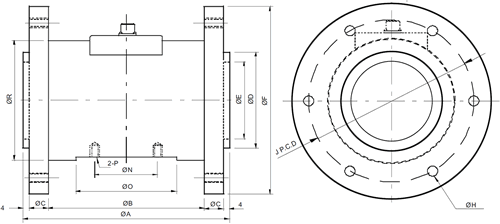

Capacity (Nm) |
A |
B |
C |
ØD |
ØE |
ØF |
ØR |
ØH |
N |
ØP |
J |
O |
RPM |
200 |
131 |
99 |
12 |
65 |
52 |
127 |
81 |
6x6.5 |
40 |
M6x8DP |
105 |
64 |
5000 |
500 |
133 |
101 |
12 |
76 |
62 |
136 |
88 |
6x8.5 |
40 |
M6x8DP |
114 |
64 |
4000 |
1kN |
131 |
99 |
12 |
86 |
68 |
156 |
100 |
8x10.5 |
48 |
M8x8DP |
130 |
64 |
4000 |
3kN |
147 |
107 |
16 |
102 |
75 |
172 |
116 |
8x10.5 |
50 |
M8x8DP |
146 |
68 |
3000 |
5kN |
142 |
102 |
16 |
107 |
81 |
184 |
128 |
8x10.5 |
56 |
M8x8DP |
158 |
74 |
3000 |
10kN |
160 |
112 |
20 |
128 |
102 |
220 |
156 |
8x12.5 |
64 |
M10x8DP |
186 |
80 |
2000 |
30kN |
192 |
134 |
25 |
195 |
150 |
274 |
210 |
8x12.5 |
70 |
M10x8DP |
244 |
92 |
1000 |
50kN |
198 |
140 |
25 |
216 |
174 |
316 |
210 |
8x14.5 |
80 |
M10x8DP |
278 |
100 |
1000 |
80kN |
209 |
145 |
28 |
242 |
200 |
366 |
210 |
8x18.5 |
80 |
M12x8DP |
316 |
100 |
1000 |
|
|
