High Accuracy Rotary Torque Transducer

This product has been discontinued.

Please use our Shaft type Brushless Rotary Torque Sensor | DRVL instead.

At a Glance

Capacities: 0-10Nm to 0-80kNm
1.5mV/V Output
RPM Sensor (YDR Model)
Non-Linearity: <±0.09%/Rated Capacity
Max Speed: 2000 to 6000rpm (depending on capacity)

Description

The YDR slip ring high accuracy rotary torque transducer series have parallel shafts for in-line direct drive to measure torque under continuous rotation. All versions feature a foot mounting plate, and the YDR model has a integral RPM sensor which provides a pulsed output.

Applications include performance testing of automotive components, clutches, transmissions, motors and pumps, as well as an array of general industrial measurements.

Please contact our expert sales team using the form in the sidebar, call us on +44 (0) 1189 817339, or send an email to info@appmeas.co.uk and we will be happy to assist you with your enquiry.

Technical Specifications

Product Dimensions

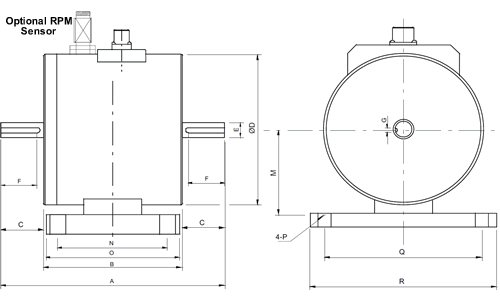

YDR Rotary Parallel Shaft Torque Transducer Outline Drawing

Dimensions are in mm

YDR Model

Capacity (Nm)	A	B	C	ØD	ØE	F	G	M	N	O	ØP	Q	R	RPM
10, 20	191	101	45	101	20	40	5x5	63.5	78	96	7	108	128	6000
50, 100	195	105	45	107	23	40	8x7	66	78	97	7	114	135	6000
200, 500	247	107	70	114	38	60	10x8	72	78	102	9	121	141	4000
1k, 2k	313	113	100	140	63	80	18x11	91	78	102	9	147	173	4000
5k, 10k	390	130	130	172	90	100	25x14	101	100	126	11	154	180	2000
20k	440	140	150	210	115	120	32x18	130	110	148	13	190	228	2000

YDRA Model

Capacity (Nm)	A	B	C	ØD	ØE	F	G	M	N	O	ØP	Q	R	RPM
10, 20	219	120	49.5	101	20	35	5x5	72	78	98	7	97	117	6000
50, 100	235	130	52.5	107	23	40	7x7	72	78	97	7	97	118	6000
200, 500	287	150	68.5	114	38	50	10x8	72	78	99	7	97	118	4000
1k, 2k	350	150	100	140	63	80	18x11	91	78	105	9	125	152	4000
5k, 10k	500	220	140	172	90	115	25x14	114	118	148	11	162	192	2000
20k	680	264	208	210	115	160	32x18	138	172	212	13	190	230	2000
50k	680	264	208	210	115	160	32x18	138	172	212	13	190	230	2000
80k	680	264	208	280	180	170	45x25	180	180	220	21	300	350	2000
